Front Exhaust Pipe

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Pipe Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: The three-way catalytic converter (TWC) may be extremely hot, even after the rest of the exhaust system has cooled.

Applies only to turbocharged gasoline engines

Detach the front exhaust pipe at the three-way catalytic converter (TWC) and at the front mounting. Relieve the load from the pipe by hanging the pipe in a hook.

Remove the mounting for the heated oxygen sensor (HO2S) in the pipe bracket.

NOTE: Do not damage the wiring for the front and rear heated oxygen sensors (HO2S).

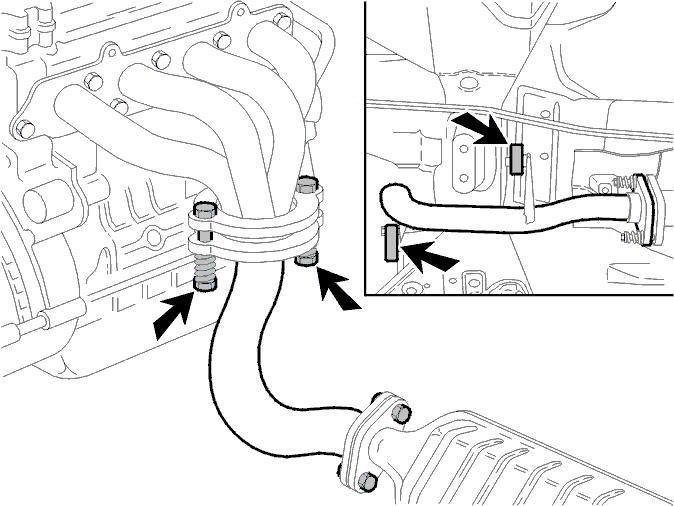

Fig 2: Front Exhaust Pipe At Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Does not apply to turbocharged engines

Detach the front exhaust pipe at the manifold and from the front mounting.
Relieve the load from the pipe by hanging the pipe in a hook.

NOTE: Do not damage the wiring for the front and rear heated oxygen sensors (HO2S).

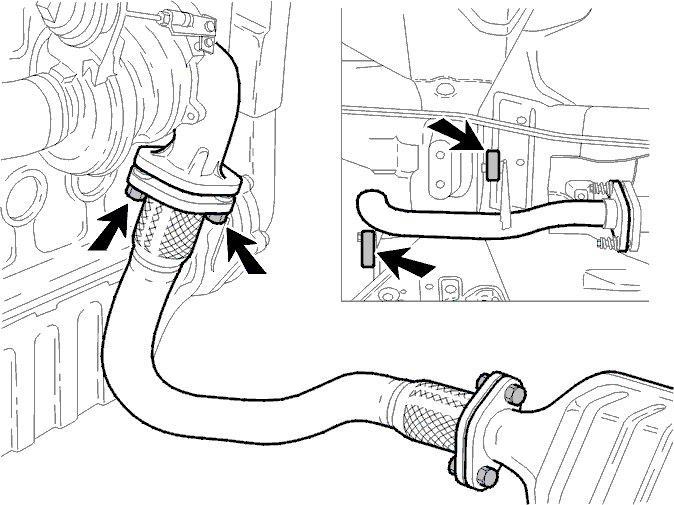

Fig 3: Front Exhaust Pipe At Turbocharger

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to turbocharged diesel engines

Detach the front exhaust pipe at the turbocharger (TC) and from the front mounting.
Relieve the load from the pipe by hanging the pipe in a hook.
