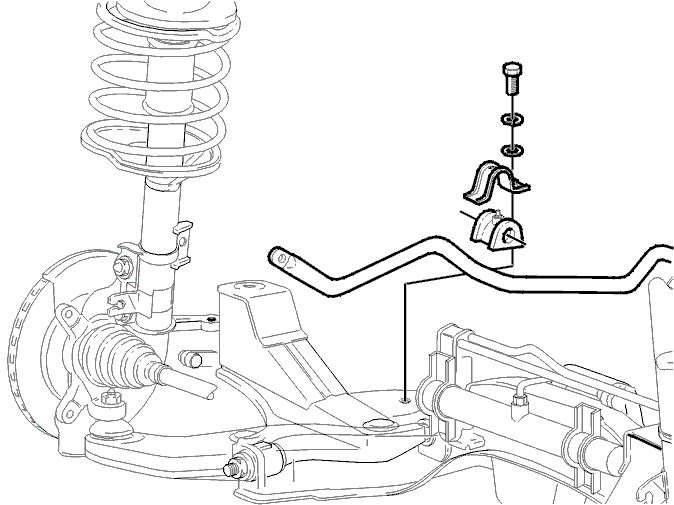

Bushings And Anti-Roll Bar
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Slacken off the bushings from their mounting points on both sides
- Twist off the caps on both sides at the same time
- Remove the bushings.
Applies only when replacing the anti-roll bar:
Remove the anti-roll bar.
