Assembling the Spring Strut
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

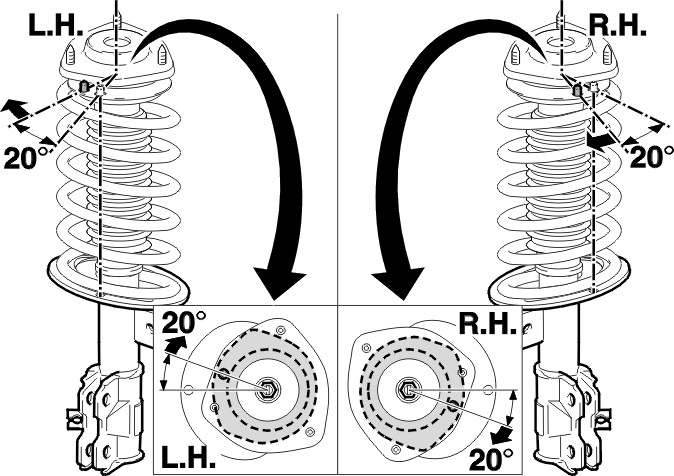

For optimal handling in "Sport" and "Dynamic" versions, the upper spring plates (A) are installed turned 20° clockwise (seen from the wheel). This rotation must be carried out on both the left and right-hand sides.
Lubricate the stop using petroleum jelly. Install the stop in the dust boot.
Pull out the shock absorber rod completely.
Install:
- the rubber stop and dust boot
- the rubber on the underneath
- the spring strut through the spring
- the rubber on top
- the upper spring seat
- the mounting
- the lower spring strut mounting
- the nut. Finger tighten.
Install the upper spring seat (A) so that the opening in the seat is turned 20° clockwise in relation to the right-hand line (B).
CAUTION:
Turn clockwise on both the left and right-hand sides.
Carefully release the spring and check that is correctly positioned in the rubber stop at the spring seats.
Check the rotation.

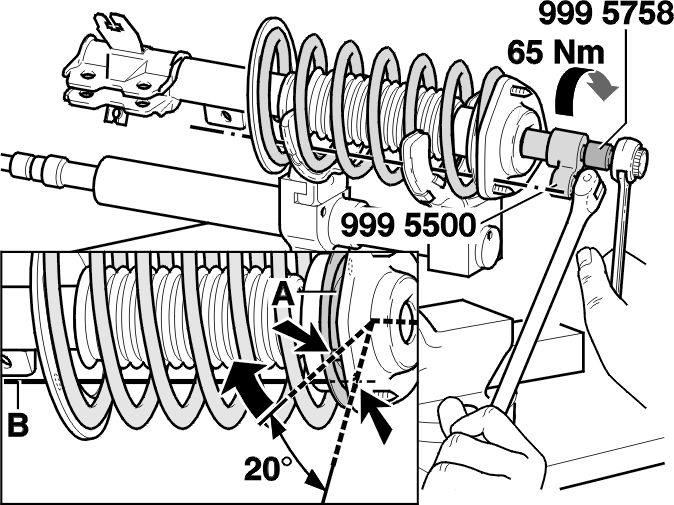

Use special tools 9995500 and 9995758 . Tighten the nut. Tighten to 65 Nm .
Coat the bearing in grease.
Install dust cover.
Remove the spring strut from the special tool.
