Disassembling the Spring Strut
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

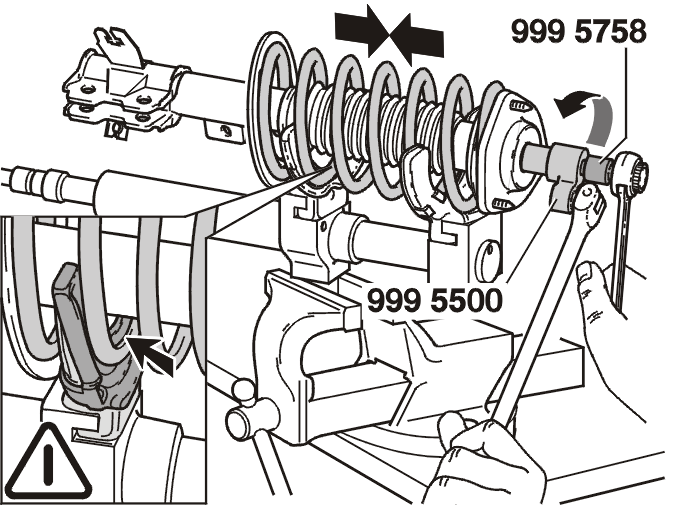

- Hook the hooks on the tool over as many spring spirals as possible
- Compress the spring by pumping the tool, always ensuring that the spring is correctly positioned in the catches
- Compress the spring until it is released.
HINT: Note the position of the components. This will make installation easier.
- Remove the dust boot
- Remove the nut using special tool 9995500 (socket) and 9995758 .
Remove:
- the spring strut mounting
- the bearing
- the support plate
- the spring
- the stop and the dust boot.
