Install the Upper Section Of the Rear Shock Absorber
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Position the shock absorber. Ensure that the end of the lower spiral is pointing towards the rear of the car .

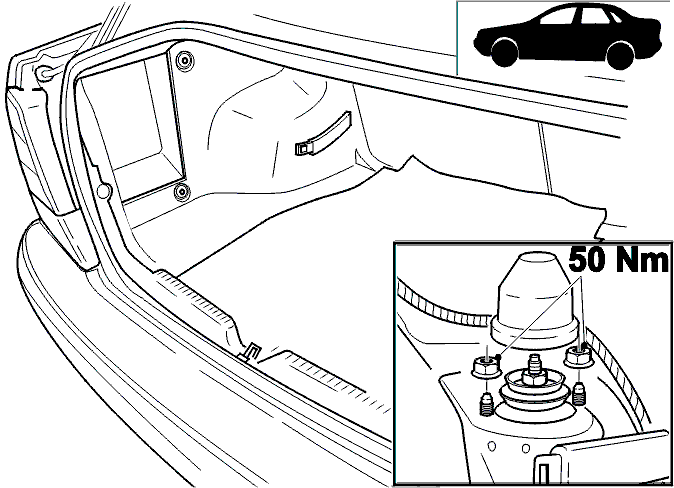

Install the upper nuts for the shock absorber. Tighten to 50 Nm . Use new nuts.
Install the protective cap. Reinstall all removed components. See Installing the rear panel .
