Compress the Spring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

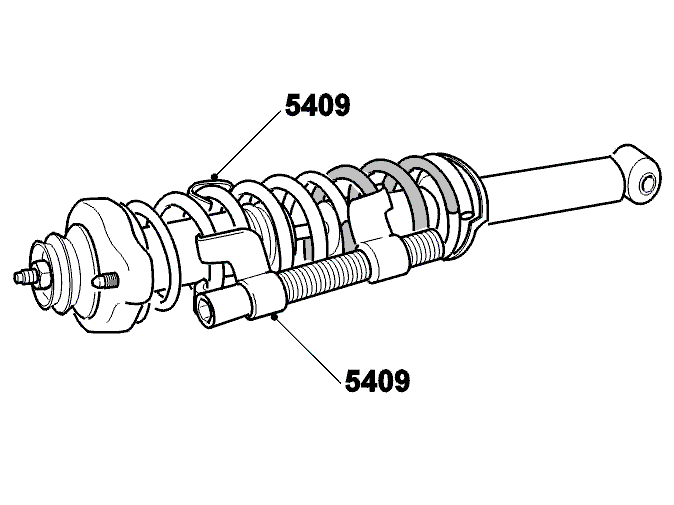

Fig 1: Compressing Spring Using Spring Clamps 999 5409

Courtesy of VOLVO CARS OF NORTH AMERICA.

Compress the spring. Use spring clamps 9995409 .

Position the spring clamps exactly opposite each other.

The clamps must grip across as many coils as possible.

Alternately tight the spring clamps until the spring is loose.

NOTE: Spring clamps must always be slacked off or tightened alternately.
