Check the Shock Absorber

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

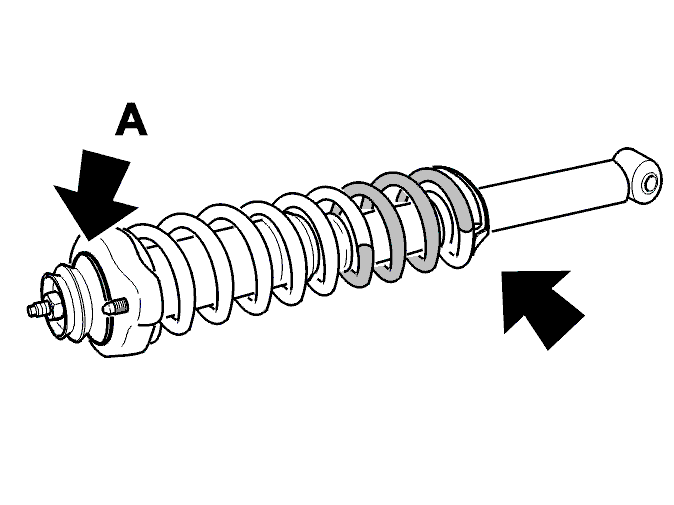

Fig 1: Silicon Sealing
GLL116550Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the spring clamps. Check that the Silicon sealing is intact.

CAUTION: Damaged Silicon sealing (A) can cause leakage
