Installing the Shock Absorber

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

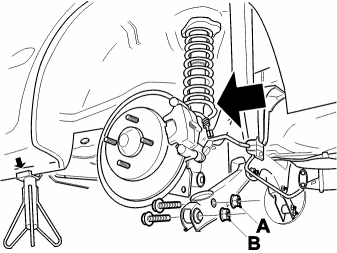

Fig 1: Installing Lower Section Of Rear Shock Absorber

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Check that the end of the lowest spiral is pointing backwards.

Install the screw in the lower control arm.

Press the entire mounting downwards.

Install the screw in the shock absorber.

Tighten the nuts (A) and (B). Use new nuts.
