Disassembling the Shock Absorber And Spring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

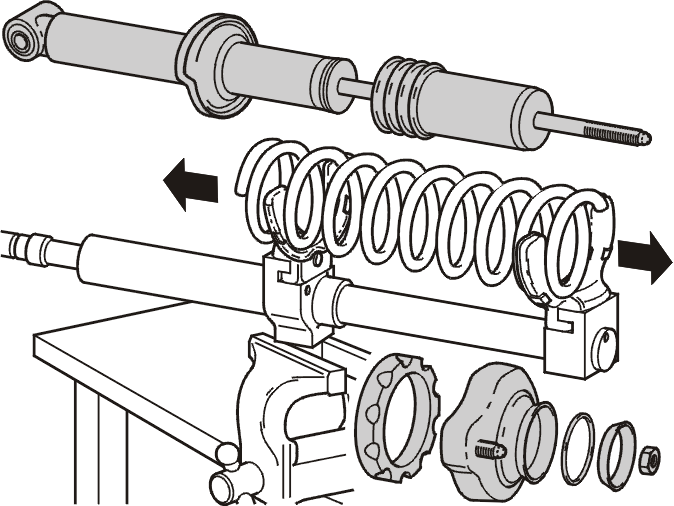

Fig 1: Identifying Shock Absorber, Dust Cover, Rubber Stop And Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the nut for the shock absorber
the ring
the upper spring cap
the rubber
the spring
the shock absorber
the rubber stop
the dust boot.

HINT: Note the position of the components. This will make installation easier.

Check all components for wear and damage.
