Assembling the Shock Absorber And Spring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

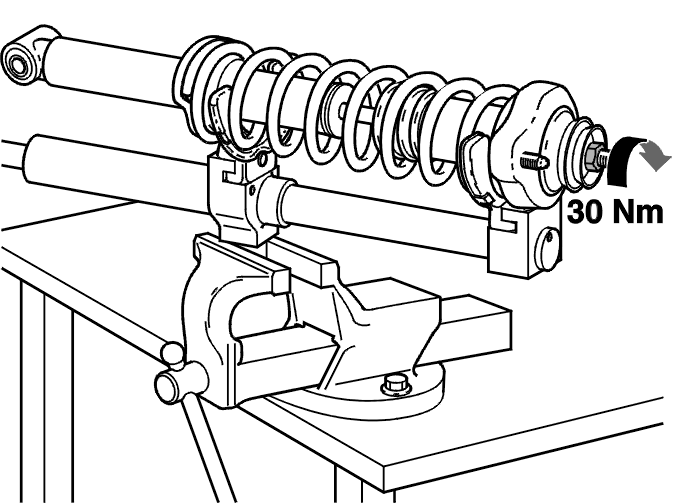

Fig 1: Identifying Ring And Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the shock absorber piston out as far as possible.

Install:

the rubber stop and dust boot
the shock absorber through the spring
the upper spring cover. Ensure that it is parallel (maximum 3° deviation) to the shock absorber mounting.

Check that the ends of the spring are completely inside the spring caps.

Install the ring and a new nut. Tighten to 30 Nm (Nivomat shock absorbers: 25 Nm .
