Removing the seat cushion padding

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

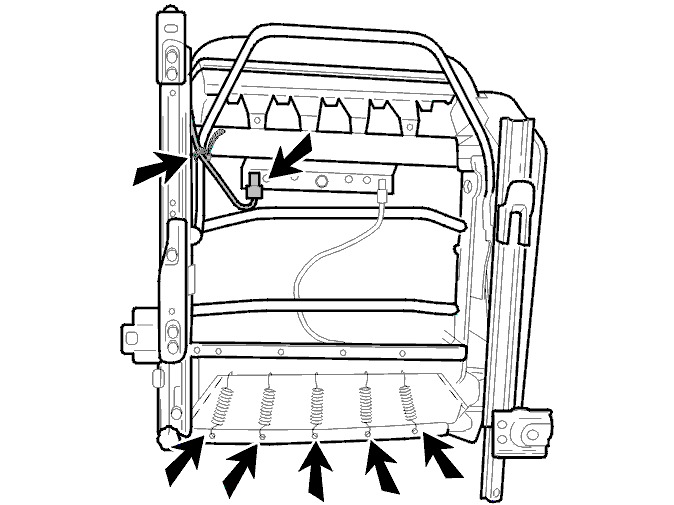

Fig 1: Removing Seat Cushion Padding

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seat cushion upholstery. See Removing the seat cushion upholstery .

Disconnect the heater pad cable harness by removing:

the connector from the frame
the connector from the cable harness
the cable harness from the frame.

Remove:

the zips on the reverse
the padding from the reverse of the frame. Unhook the padding from the front of the frame
the heater pad. See Heater pad seat cushion .
