Replacing the back-up (reversing) lamp switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

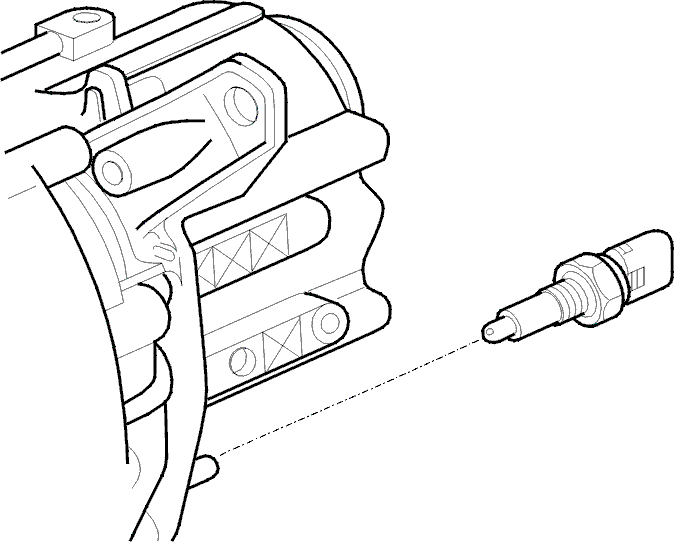

Fig 1: Replacing Back-Up (Reversing) Lamp Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Manual transmission:

Disconnect the connector. Remove the back-up (reversing) lamp switch.

Reinstall the components in reverse order.

NOTE: Always use a new gasket

Check the transmission oil level.

Automatic transmission:

See TRANSMISSION - REMOVAL, REPLACEMENT AND INSTALLATION .
