Signal too high. Intermittent fault: Check

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Release the boost pressure control (BPC) valve according to Checking and adjusting the boost pressure control (BPC) valve on the turbocharger (TC) . Check that the boost pressure control (BPC) valve does not stick in the closed position.

Check the turbocharger (TC) according to Checking boost pressure with manometer while test driving the car . Check in particular the hoses and the function of the pressure regulator.

Remedy as necessary.

Other information
- To connect the breakout box, see Connecting the breakout box. EMS 2000
- For information about signals, see Signal specification
- See Boost pressure sensor 1, replacing

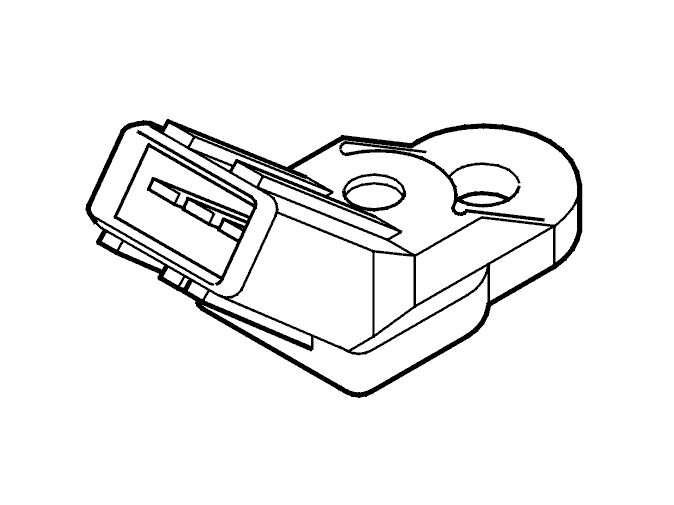

Fig 2: Identifying Boost Pressure Sensor Connector Terminals
Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Ohmmeter
Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Boost Pressure Control (BPC) Valve
Courtesy of VOLVO CARS OF NORTH AMERICA.
