Crankshaft axial play
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Operation Number(s): 21685-2
| Special tools | |
|---|---|
| T9995971 PLATE (FOR MAGNETIC BASE) Tool number: T9995971 Tool description: PLATE (FOR MAGNETIC BASE) Tool boards: |
|
| T9999696 MAGNETIC BASE Tool number: T9999696 Tool description: MAGNETIC BASE Tool boards: |
|
| T9813134 DIAL INDICATOR Tool number: T9813134 Tool description: DIAL INDICATOR Tool boards: |
|
| T9995462 JIMMY TOOL (DISMANTLE-DRIVE SHAFT/GEARBOX)B-VERSION Tool number: T9995462 Tool description: JIMMY TOOL (DISMANTLE-DRIVE SHAFT/GEARBOX)B-VERSION Tool boards: |
NOTE:
Removal steps in this procedure may contain installation details.
Remove the right front wheel.
When installing Installing wheels
Fold away the wheel arch liner and tie it up.

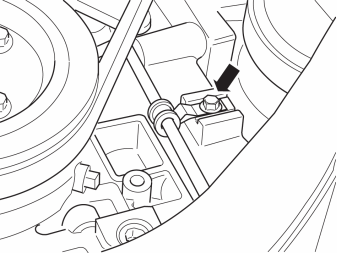

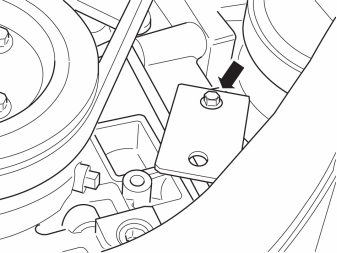

Remove the clamp screw on the fuel line. Move the clamp upward.

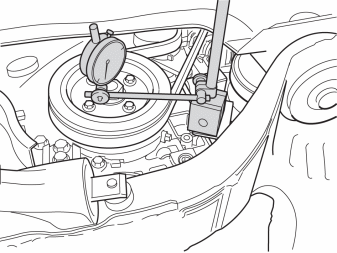

Measure the crankshaft nut or the oscillation damper's inner ring.

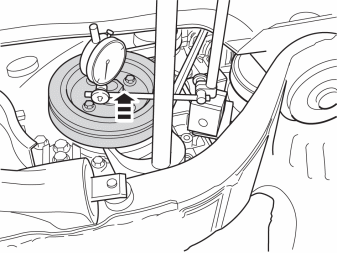

Pry out the crankshaft. 9995462
Zero the dial indicator.

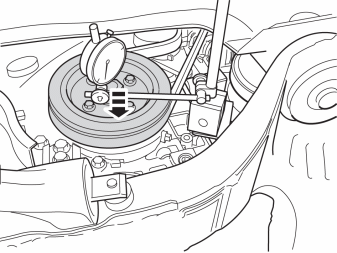

Push in the crankshaft. Use both hands and press hard. In the event of problems moving the crankshaft toward the gearbox, run the engine warm and use a crowbar placed between the oscillation damper and the member. Use protective blocks.
Read the dial indicator. Max permitted play 0.25 mm.
Repeat the procedure several times.
Remove the test equipment.
To install, reverse the removal procedure
