Next test measurement
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

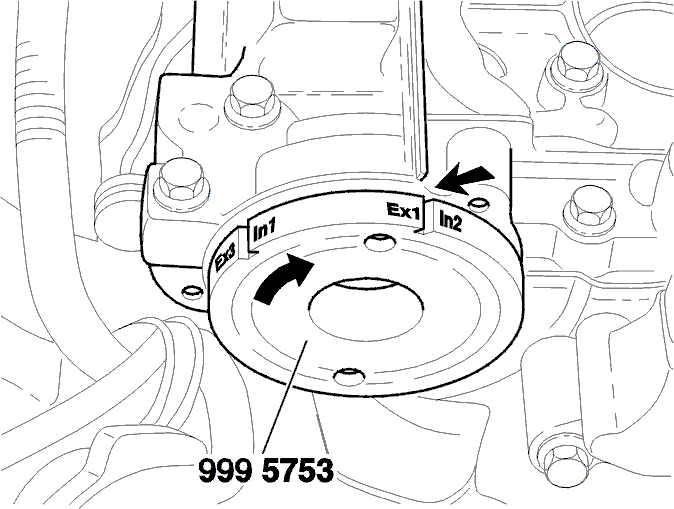

Turn the crankshaft in the direction of engine rotation until the next marking In2/Ex1 is opposite the flange on top of the cylinder head. Perform the test measurement according to the previous description.
Continue by measuring the remaining valve clearances according to the markings on tool 9995753 .
