Installing components
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

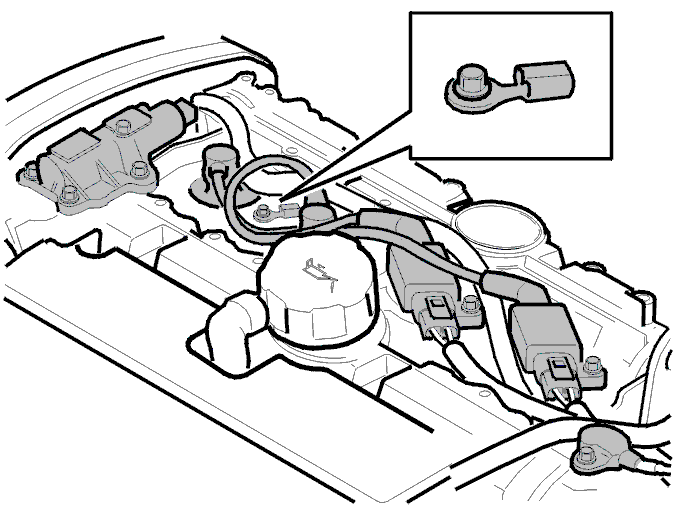

Install:
- the ignition coils and ignition cables according to earlier markings
- the connectors on the variable valve timing valve and ignition coils
- the ground lead for the ignition coils
- the camshaft position (CMP) sensor.
Place the cable duct and cable harness in position.
Install:
- the screws for the cable duct on the rear edge of the cylinder head and throttle body (TB) bracket
- the connectors for the injectors
- the connector for the engine coolant temperature sensor
- the inlet hose between the mass air flow (MAF) sensor and throttle body (TB)
- front timing cover
- the cover over the ignition coils
- the upper timing cover
- the cover over the throttle body (TB)
- the cover over the injectors.
