Pressurize the system to check
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

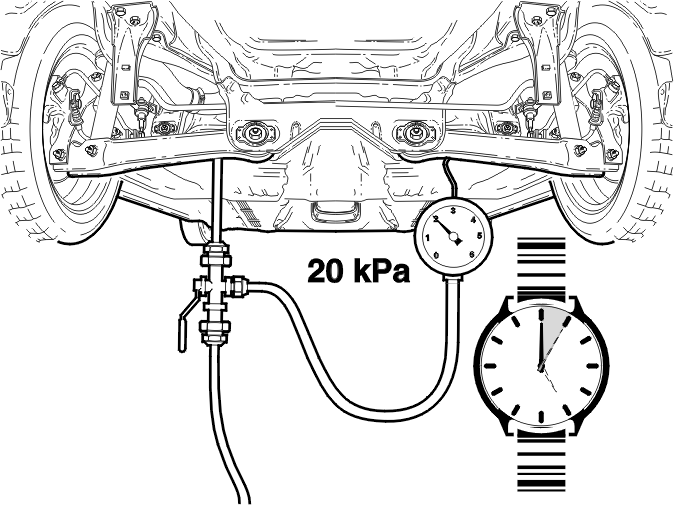

- Connect the compressed air system in the workshop to the pressurized system.
- Set a pressure of maximum 20 kPa
- Turn the stop cock so that the compressed air enters the system.
- Pressurize the system by holding the drain cock open for 5 minutes
.
Check the pressure on the manometer 9995230 at the Evaporative emission system (EVAP) valve. Close the cock when the pressure exceeds 25 kPa .
