Connecting the compressed air system to the leak diagnostic pump (LDP)
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Raise the car
- Clean the terminals on the leak diagnostic pump (LDP)

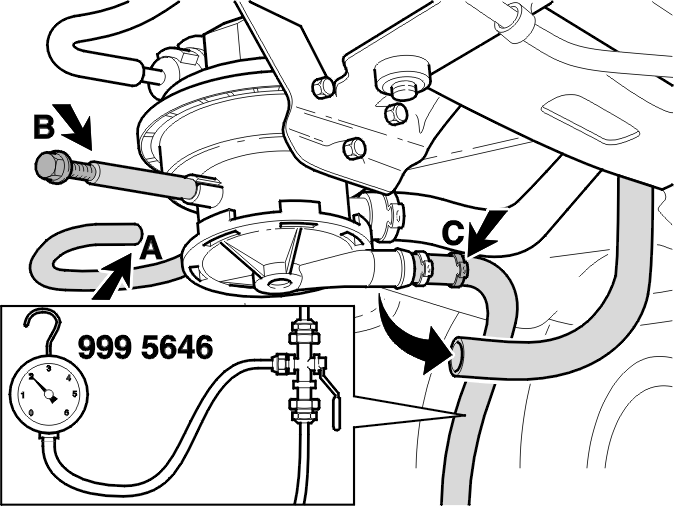

- Disconnect the hose (A) from the reverse of the leak diagnostic pump (LDP)
- Plug the terminal (B) on the leak diagnostic pump (LDP) using a hose and plug
- Slacken off the terminal at the bottom of the pump cover, this leads upwards in the wheel arch
- Connect pressure regulator 9995646 to the leak diagnostic pump (LDP) terminal Use a connection section from 9995757 .
