Connecting pressure gauge 999 5230
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

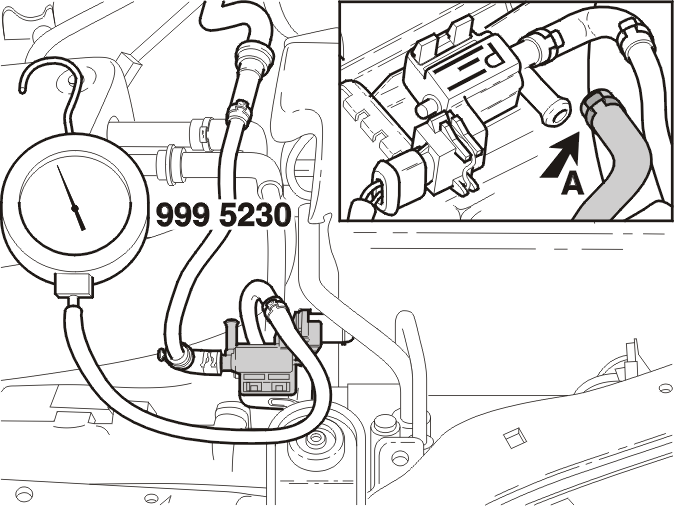

Open the hood. Remove the hose connector (A) leading to the rear section of the car from the evaporative emission system (EVAP) valve.
Connect pressure gauge
9995230
to the pipe. Use the connection section for special tool
9995757
.
