Check the pressure drop in the system
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

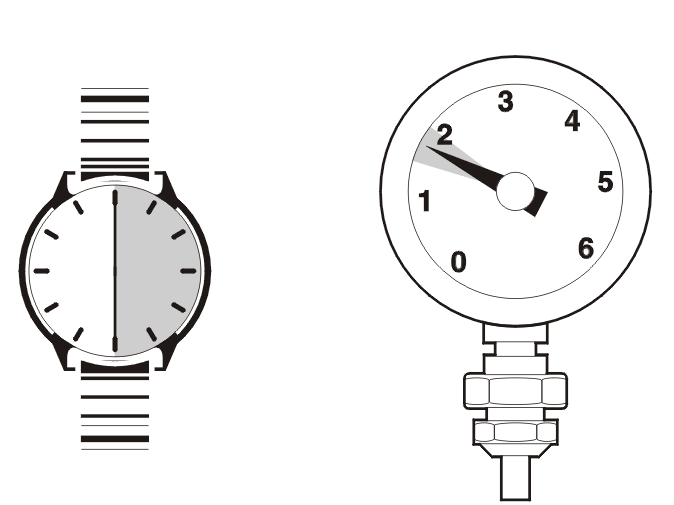

The built-up pressure drops to a value between 17 and 20 kPa .
CAUTION:
The pressure must remain at the minimum level for at least 30 minutes
.
If the pressure drops further the leakage must be located and remedied. If the system cannot be pressurized there is a large leak which must be rectified.
HINT: Tip: when the fuel injection system has reached a certain pressure 20 kPa the leak diagnostic pump (LDP) functions as shut off device for the evaporative emission (EVAP) system. This takes place when the compressed air supply is switched off.
If the pressure in the system is higher, it will drop to between 17 and 20 kPa and then remain at that level.
