Installing components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

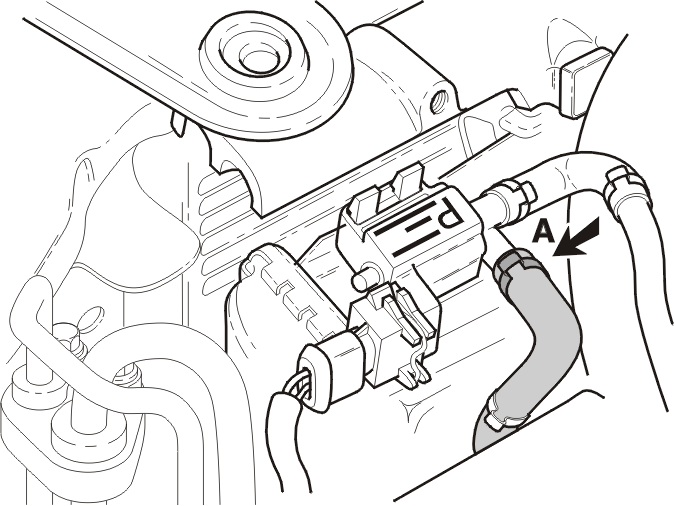

Fig 1: Installing Hose On Evaporative Emission System (EVAP) Valve And Securing Hose Clamp In Correct Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the pressure gauge from the hose
Re-install the hose on the evaporative emission system (EVAP) valve. Secure the hose clamp in the correct position.
