Remove vibration damper

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

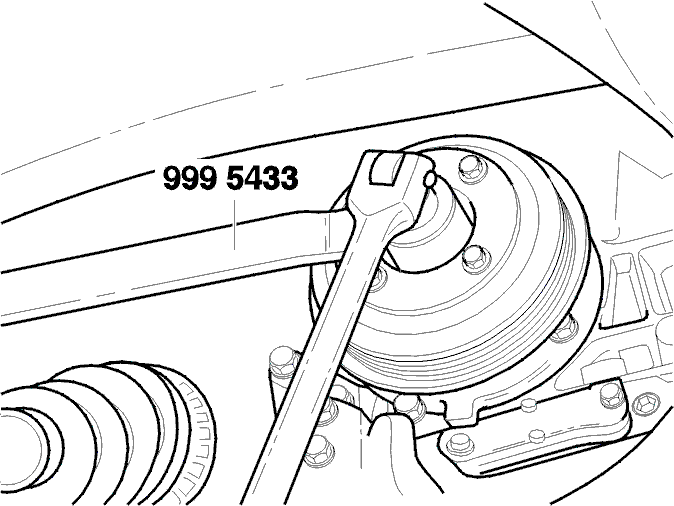

Fig 1: Identifying Counterhold
GLL113985Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the engine splash guard.

Remove the vibration damper using the counterhold 9995433 .
