Remove distributor wheel from the crankshaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

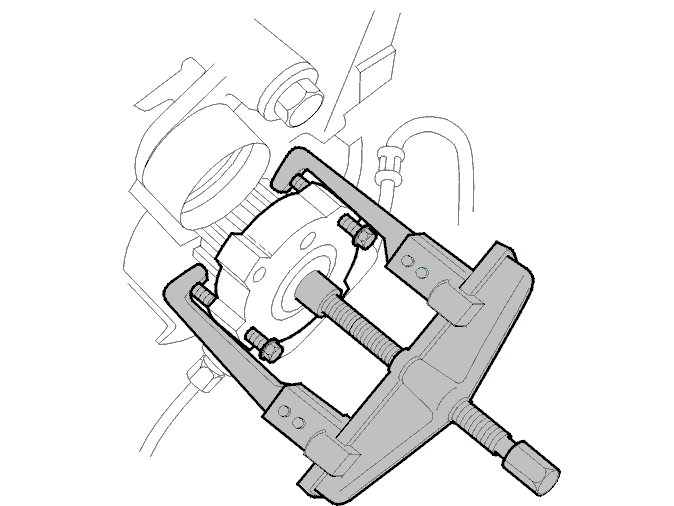

Fig 1: Identifying Universal Extractor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use the universal extractor and two of the vibration damper bolts.

Insert the two bolts in the pulley by hand as far as they will go.

Install the extractor so that the claws grip the bolts (not the wheel in front of the toothed belt).

NOTE: Check that the claws of the extractor do not damage the teeth of the wheel.
