Checking oil pressure

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

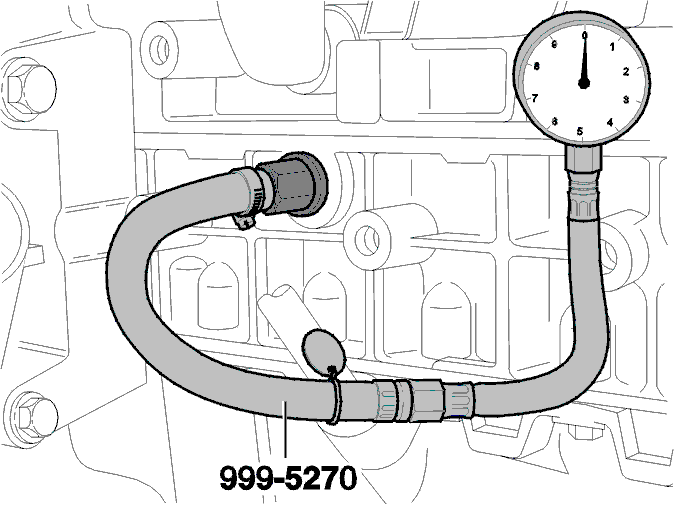

Fig 1: Checking Oil Pressure

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use oil pressure gauge kit 9995270 .

Adapter 9995273 , hose 9995272 and gauge 9995271 . Connect these items to the hole on the cylinder block for the oil pressure sensor.

Start the engine. Read off the oil pressure at different engine speeds (RPM).

Minimum oil pressure at:

13.3 r/s (800 r/min)	0.10 MPa	-
14.2 r/s (850 r/min)	0.10 MPa	-
66.7 r/s (4000 r/min) minimum	0.35 MPa	-
66.7 r/s (4000 r/min) maximum	0.70 MPa	-

NOTE: The relief valve begins to open at 0.5 MPa.

Remove the tools.

Use a new gasket when installing the oil pressure sensor.

Tighten to 25 Nm .
