Removing the turbocharger (TC)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

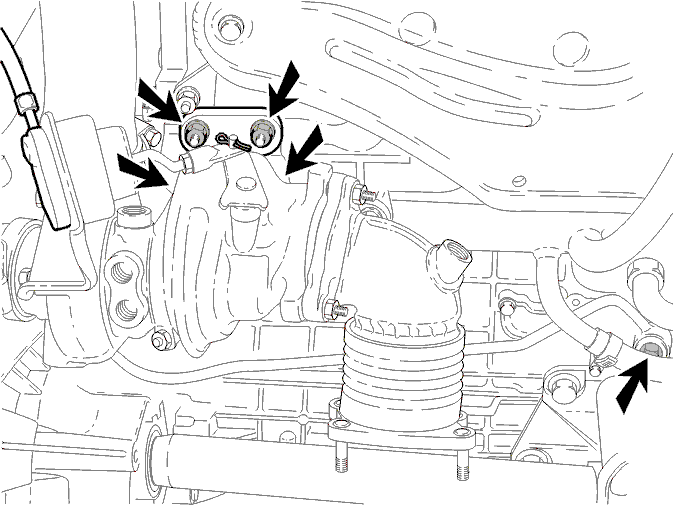

Fig 1: Identifying Turbocharger Mounting Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the mounting nuts securing the turbocharger (TC) to the exhaust manifold.
Remove the hoses from the turbocharger (TC) control valve. Mark up the hoses.
Remove the turbocharger from the exhaust manifold
Carefully pull the return tube out of the cylinder block
Remove the turbocharger (TC) by turning it
Cover the openings on the engine
Remove the gasket if applicable.
