Installing turbocharger (TC) components
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

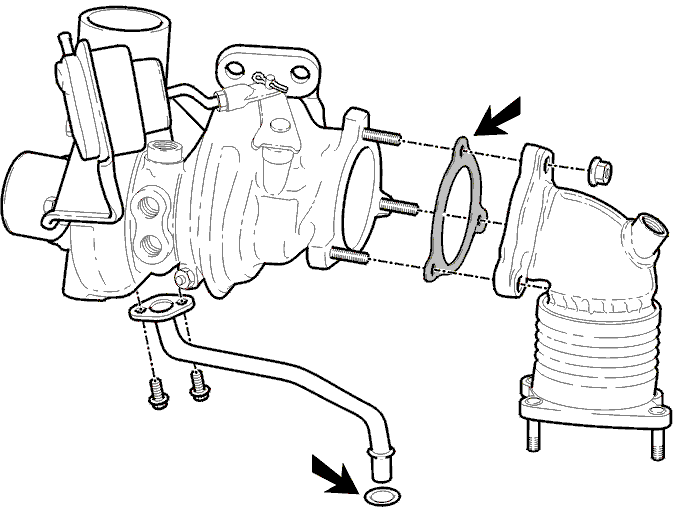

- Clean the oil return line
- Install the oil return line with a new gasket on the turbocharger (TC)
- Install the 2 hoses)
- Clean the pipe bend surfaces carefully
- Install a new gasket
- Install the pipe bend.
Tighten to 45 Nm .
