Removing the throttle body (TB)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

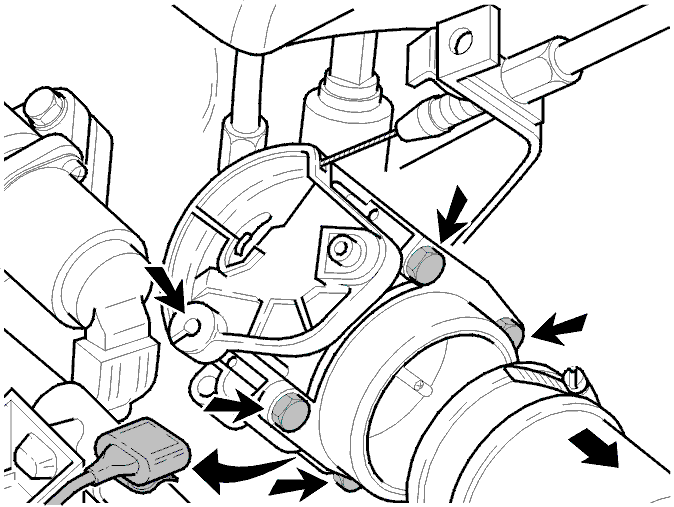

Fig 1: Removing Throttle Body (TB)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the cover for the throttle body (TB)
the air intake hose
the throttle cable
the throttle body (TB) from the intake manifold
the connector
the gasket.

Clean the throttle body (TB) and intake manifold and air intake hose.
