Installing the throttle body (TB)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

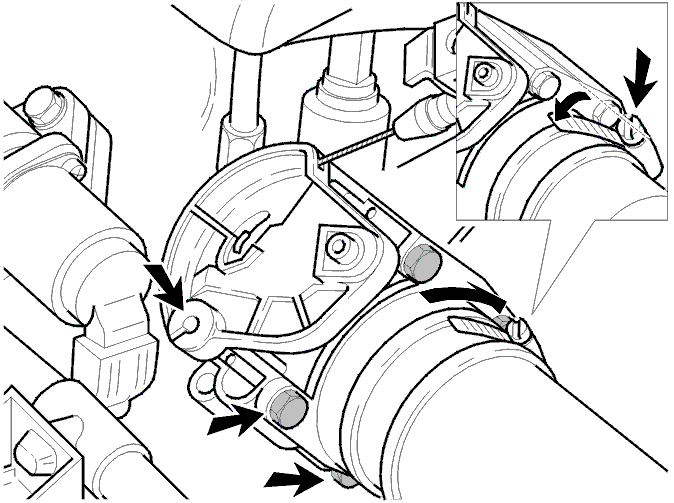

Fig 1: Installing Throttle Body (TB)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector to the throttle body (TB).

Install

the new gasket, secured using the mounting screws
the throttle body (TB). Tighten to 10 Nm
the air intake hose.

NOTE: Ensure that the clamp never comes into contact with the throttle pulley in the idling or wide open throttle (WOT) positions.

Test the function. Reinstall the throttle body (TB) cover.
