Turbocharger (TC), oil and coolant hoses, removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

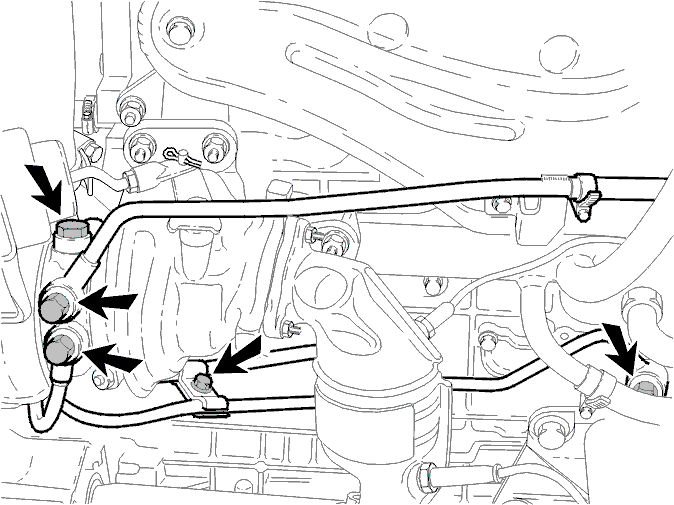

Fig 1: Removing/Installing Turbocharger (TC), Oil And Coolant Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the upper and lower coolant hoses for the turbocharger (TC)
the upper oil pipe for the turbocharger (TC)
the clamp from the lower oil pipe
the banjo bolt from the oil pipe on the engine side. Wipe up any spilled oil.
