Oil supply line to engine and turbocharger (TC), installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

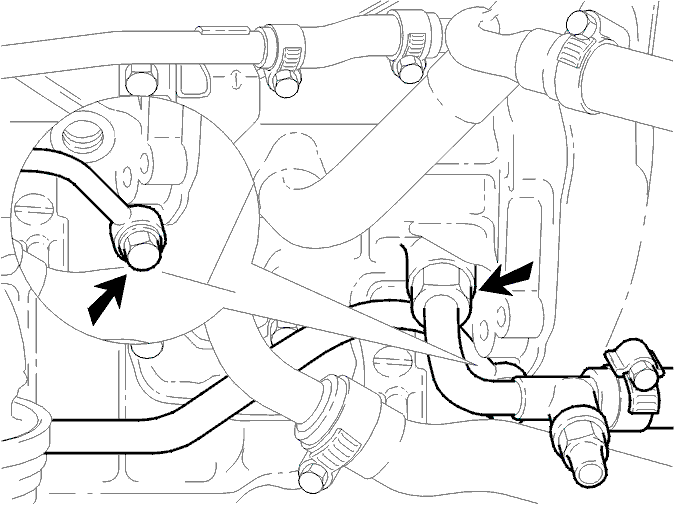

Fig 1: Installing Oil Supply Line To Engine And Turbocharger (TC)
GLL114788Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: Slacken off the pipe connection nut for the coolant pipe. Bend the pipe to one side. Then tighten the pipe connection nut. Tighten to 25 Nm  .

Install new O-rings. Apply a little grease on the engine side.

Install the pipes with new O-rings on the turbocharger (TC).
