Oil and coolant pipes, installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

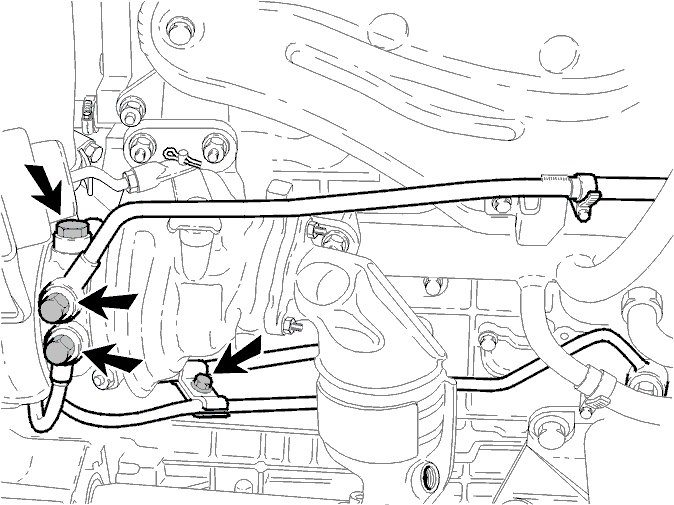

Fig 1: Installing Oil And Coolant Pipes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the lower coolant pipe. Tighten the lower coolant pipe. Tighten to 25 Nm
the upper coolant pipe. Tighten the upper coolant pipe. Tighten to 25 Nm
the clamp on the oil pipe. Tighten the clamp.
NOTE: Use new copper washers for the coolant pipes and for the upper oil pipe.
