Removing the heat exchanger
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

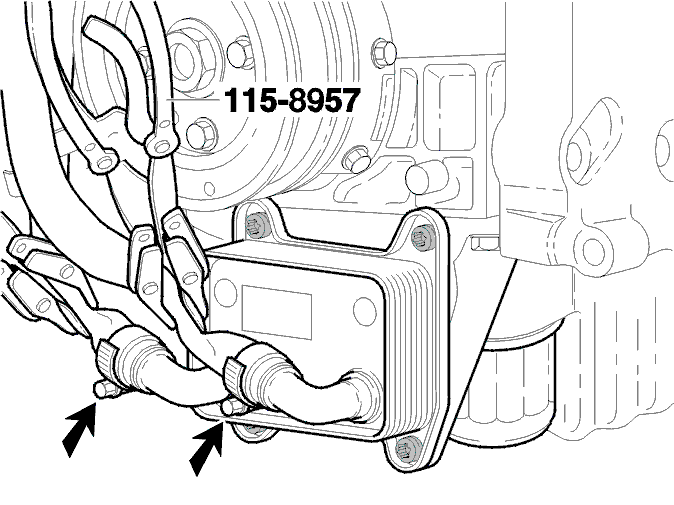

- Install pliers 1158957 on both the water hoses
- Release the clamps. Remove the water hoses from the heat exchanger
- Remove the four screws. Remove the heat exchanger
- Collect up any spilled oil and water.
