Installing the charge air cooler (CAC)
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- See Replacing the intake air temperature sensor when the charge air cooler (CAC) has been replaced

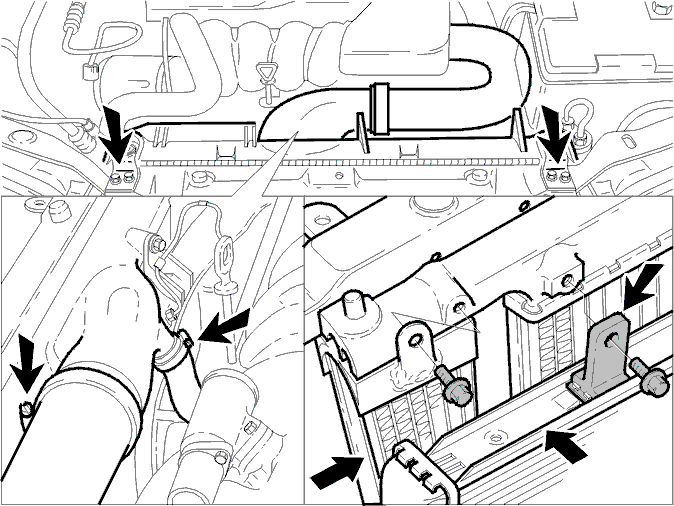

- Carefully install the charge air cooler (CAC). Position the radiator on the charge air cooler (CAC).NOTE: Press the oil cooler into place in the charge air cooler (CAC).
- Install the two cooler mountings using the screws. Tighten the screws to 25 Nm
- Clean the connection surfaces. Connect the air intake hose. Tighten the clamp
- Connect the idling hose. Tighten the clamp.
