Replacing throttle position (TP) sensor: Installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Clean screws and apply locking fluid, P/N 1 161 053

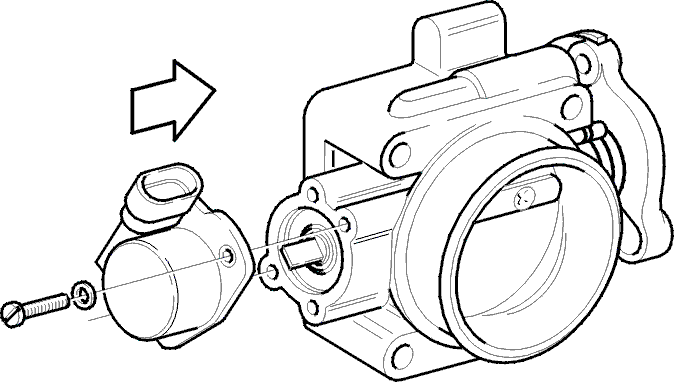

- Secure the sensor as shown.
Turn the sensor until some opposition can be felt
- Install the two screws. Torque to 5 Nm
- Seal the screws
- Reinstall throttle body, see Installing the throttle body (TB) .
Start engine. Read any diagnostic trouble codes (DTCs).
