Removing SIPS bags

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Disconnecting Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Preparations

Disconnect the battery ground terminal
Remove the backrest upholstery according to Backrest, replacing .

Fig 2: Identifying SIPS Bag Screws Inside Of Backrest Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Bend out and expose the protective pad on the side where the SIPS is located.

Remove:

the two screws for the SIPS bag on the inside of the backrest frame
the tie straps
the steel clip.

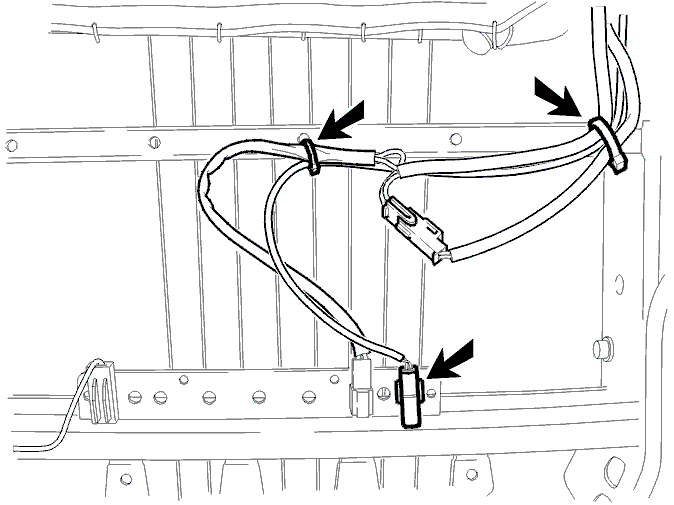

Fig 3: SIPS Airbag Cable Harness Tie Straps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the connector clip.

Cut off the tie straps.

Disconnect the cable harness.

Replace the SIPS airbag.
