IC (inflatable curtain): Removal

Fig 1: Identifying Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

First read Preparation .

Remove:

• The headlining according to Removing the headlining .

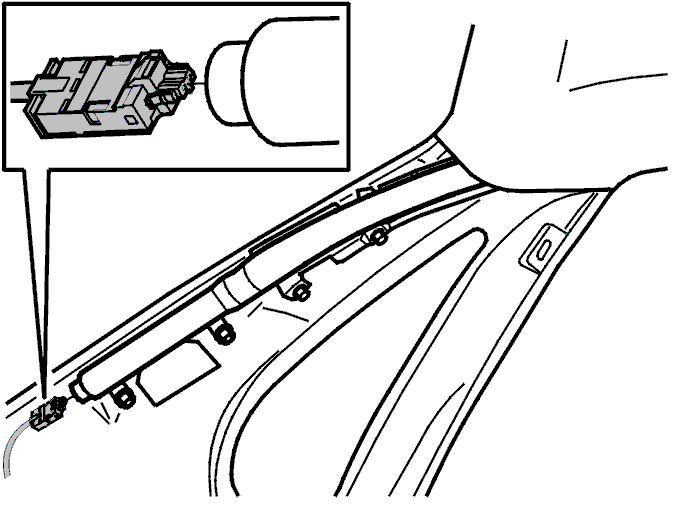

Fig 2: Identifying Inflatable Curtain Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the connector according to Igniter wire connector .

Fig 3: Inflatable Curtain Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• clips A, B, C and D
• the screw (3). Unhook the inflatable curtain.

Fig 4: Removing/Installing Clips, Nuts & Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• clips A, B and C
• the nuts (1) and (2). Lift the inflatable curtain out.

Fig 5: Removing/Installing Screws For Deflector & Deflector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• screws 1 and 2 for the deflector
• the deflector.
