Removing the driver's airbag (SRS)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

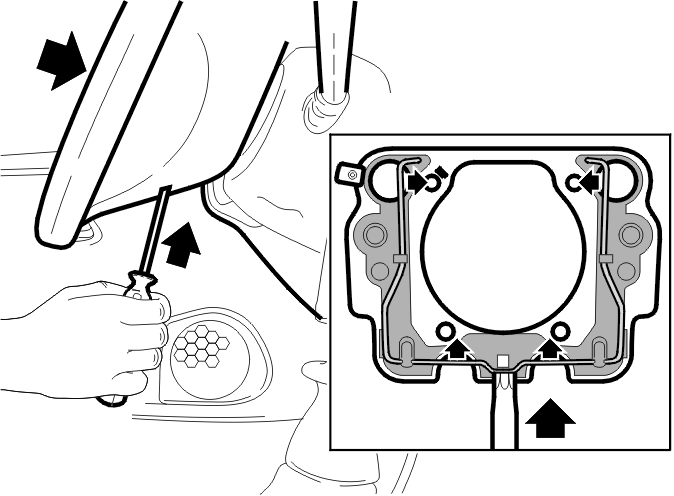

Fig 1: Removing Driver's Airbag Using Torx Screwdriver
GLL117419Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the driver's airbag (SRS) from the steering wheel. Insert a Torx screwdriver under the vertical spoke.

Press the driver's airbag (SRS) into place using the other hand. At the same time press in the spring clip properly on the inside. Use a Torx screwdriver so that the driver's airbag (SRS) detaches.

Carefully pull out the driver's airbag (SRS).

HINT: Use a 5 mm diameter Torx screwdriver which is at least 60 mm long.
