Connecting the driver's airbag (SRS)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

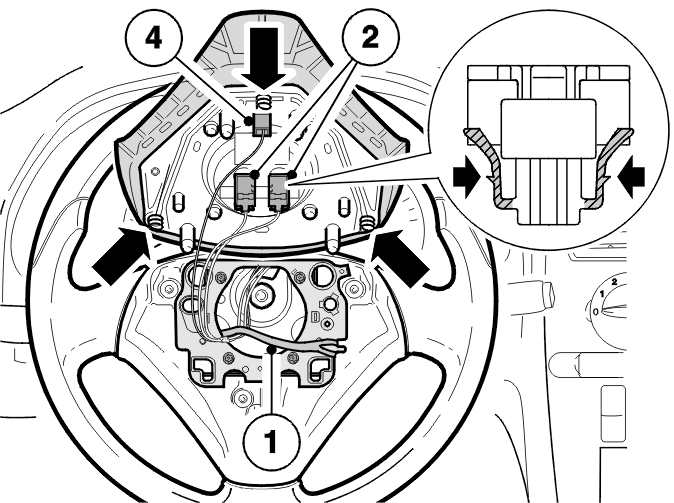

Fig 1: Connecting Driver's Airbag

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Ensure that the wiring is not trapped or damaged during installation.

Position the driver's airbag (SRS) as shown.

Connect:

the 2 connectors (2) in the driver's airbag (SRS). Check that they are properly secured
the connector for the horn (4).

Check that the 3 return springs for the horn are on the driver's airbag (SRS).

Hook the rubber stops (1) over the cable on the mounting plate.

NOTE: Ensure that the rubber stops secure the cable.
