Removing driver's airbag (SRS)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

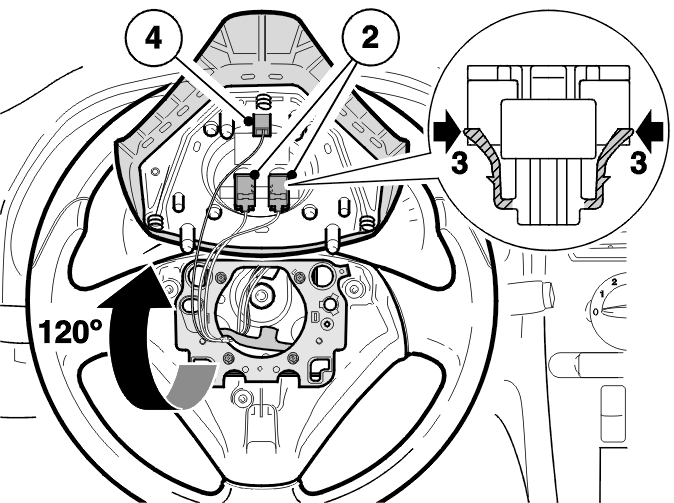

Fig 1: Removing Driver's Airbag

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Do not use tools to disconnect the connector.

Turn the driver's airbag (SRS) up.

Carefully remove:

the connectors (2). First press in the snap ring sides (3)
the connector for the horn (4)
the driver's airbag (SRS). Place to one side.

NOTE: The driver's airbag (SRS) must be stored in a safe place with the connector side (reverse) facing down. The driver's airbag (SRS) must not be covered or placed upside down.
