Connecting the driver's airbag (SRS)
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Ensure that the wiring is not trapped or damaged during installation.
- Position the driver's airbag (SRS) as shown.
Check that the wiring is not twisted.

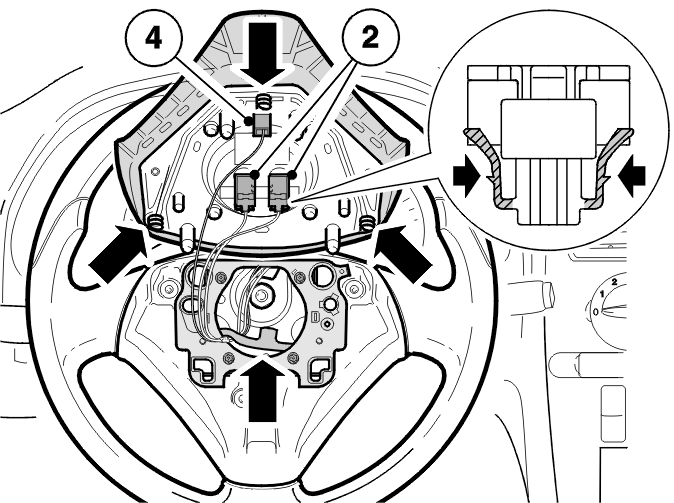

Connect:
- the 2 connectors (2) in the driver's airbag (SRS). Check that they are properly secured
- the connector for the horn (4).

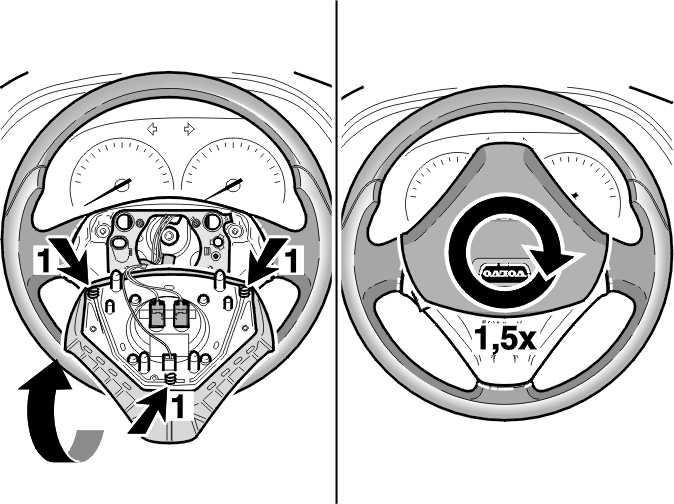

- Check that the 3 return springs for the horn (1) are on the driver's airbag (SRS).
Turn the driver's airbag (SRS) up 120° so that the connectors point towards the front of the steering wheel.
- Carefully turn the driver's airbag (SRS) approximately 1 1/2 turn clockwise.
