Removing the contact reel
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- the steering wheel module according to Steering wheel module and steering wheel
- the steering wheel according to Steering wheel module and steering wheel .
Position the steering column in the lowest position.
Remove the upper cover from the steering column.

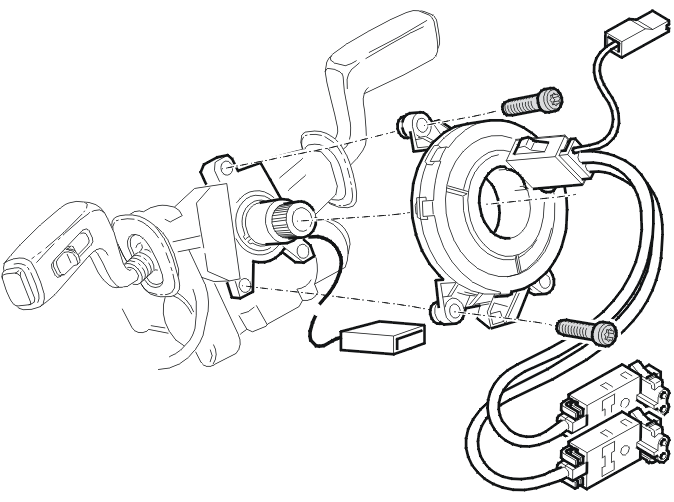

Disconnect the connector.
Remove the two screws.
Press the lock pin down.
Remove the contact reel.
