Connecting special tool 998 8695 to the steering wheel module connector

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

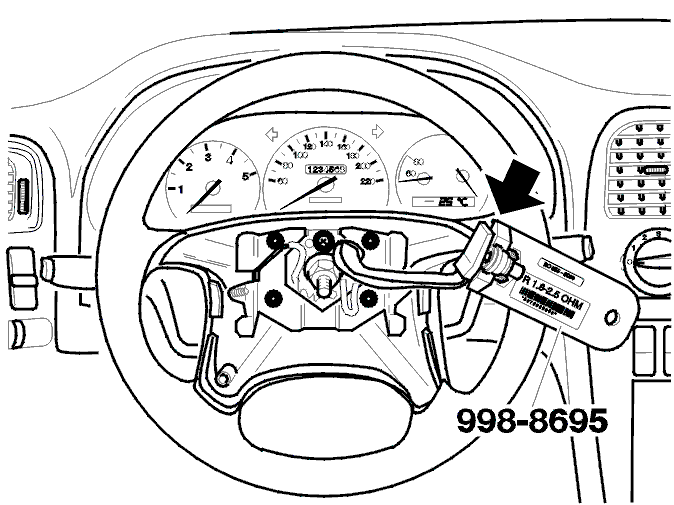

Fig 1: Connecting Special Tool 998 8695 To Steering Wheel Module Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect special tool 9988695 to the steering wheel module connector.
This is so the car can be driven without the SRS on-board diagnostic (OBD) system storing a diagnostic trouble code (DTC).
If the ignition is switched on when neither special tool or steering wheel module are connected, an open-circuit diagnostic trouble code (DTC) will be stored. (Diagnostic trouble codes (DTCs) must be cleared.)
