Connecting the passenger airbag module

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

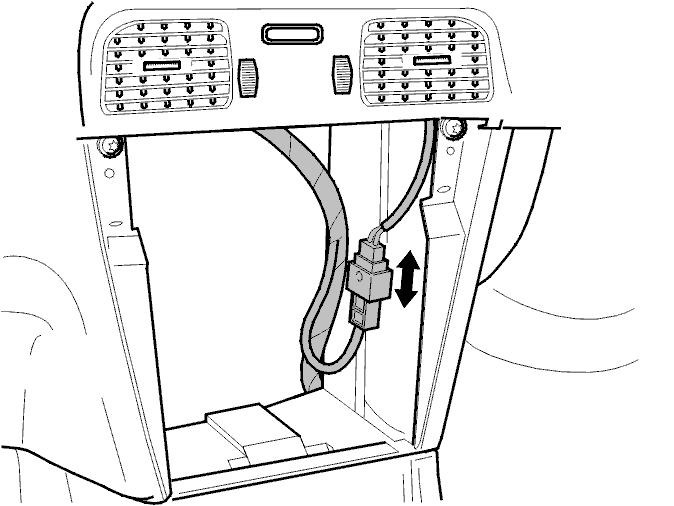

Fig 1: Airbag 4-Pin Connector
GLL117363Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the orange 4-pin connector for the passenger airbag module at the right-hand side of the center console.
