Removing the 12 volt socket

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

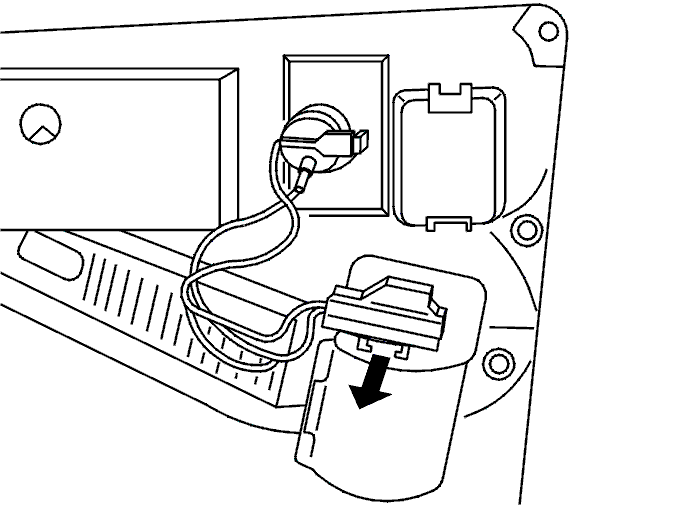

Fig 1: Removing The 12 Volt Socket
GLL113052Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rear center console according to Rear center console .

Slide the gray connector from the catch.

Open the catches. Remove the 12 volt socket.
