Removing the control panel for the heater system

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Front Plate Using Fingers In Selector Knob Holes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cars with MCC:

Pull off the selector knobs. Use a small screwdriver
Remove the front panel (insert fingers in the holes and pull carefully).

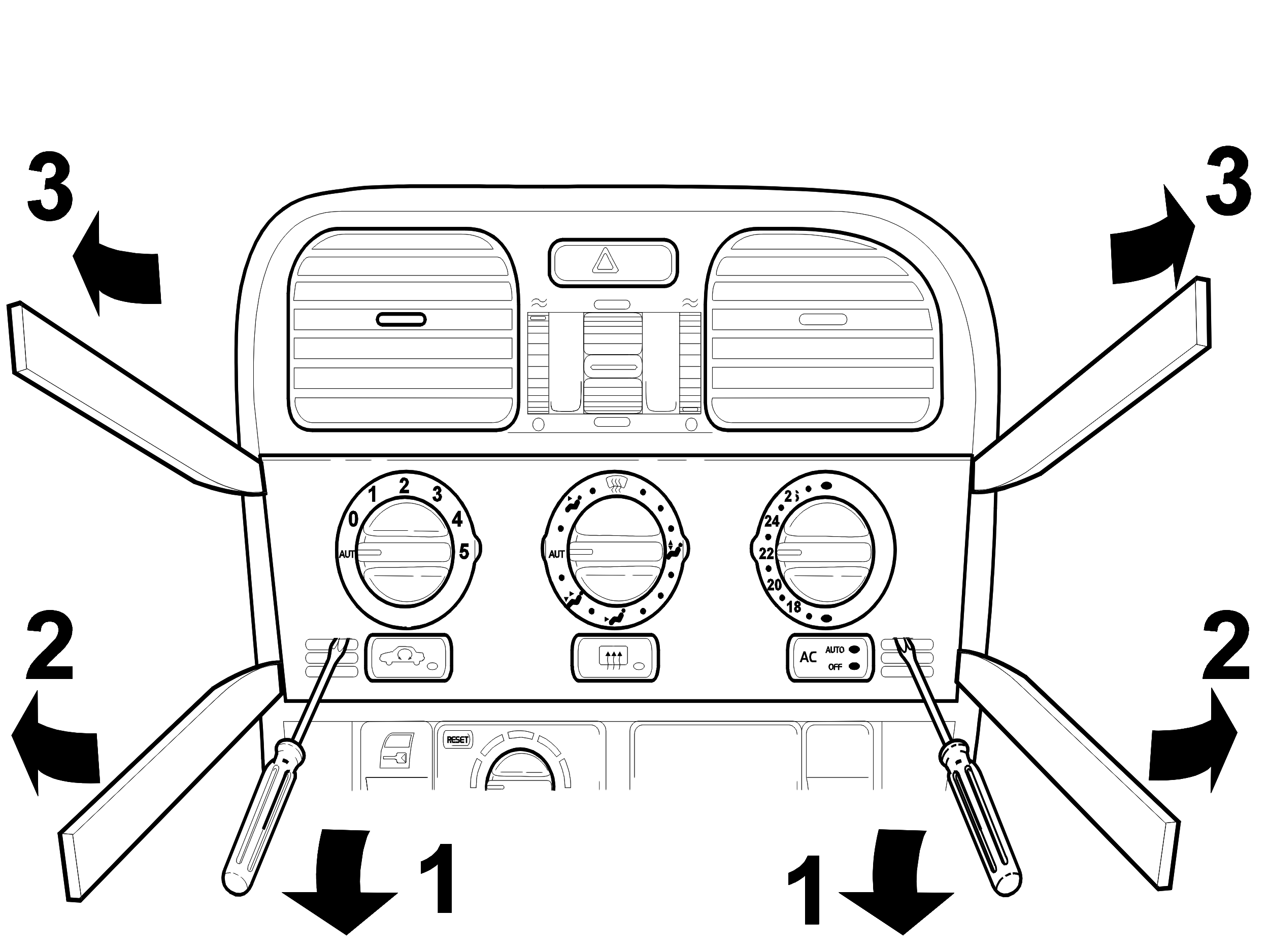

Fig 2: Removing Control Panel For Heater System

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cars with ECC:

Insert a small screwdriver through the upper ventilation vent. Press up the locking pin. Carefully pull this corner of the panel forward.
Repeat on the other side.

Carefully twist the panel out of the upper corners. Use weatherstrip tool 9814071
The selector knobs remain in place on the heater control.
