Disconnecting the wiring and the hood latch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

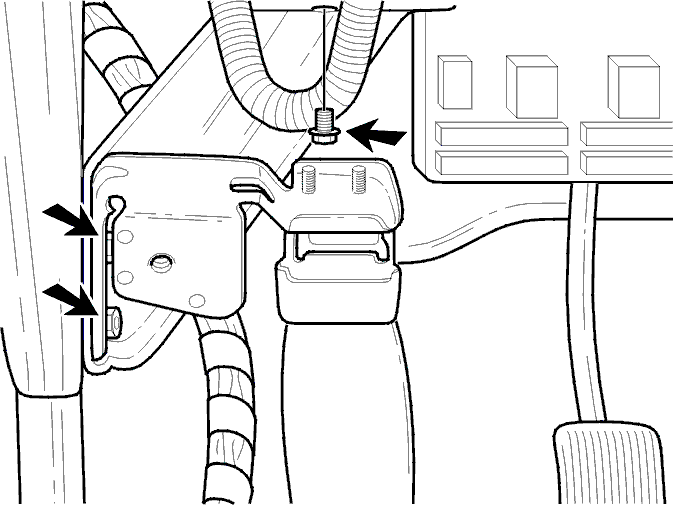

Fig 1: Disconnecting Wiring And Hood Latch

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Only applies to model year 1999- cars.

Remove:

the screw (A) and the hood catch with the mounting
the mounting nut for the fusebox. Let it sink a few centimeters
Disconnect the connectors from the wiring.

NOTE: Only applies to model year 2000- cars.

Remove:

the nut and move the hood catch to one side, away from the support
the screw from the dashboard
the screw from the top of the bracket
the bracket
the connectors from the fusebox.
