Positioning the control panel for the heater system

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

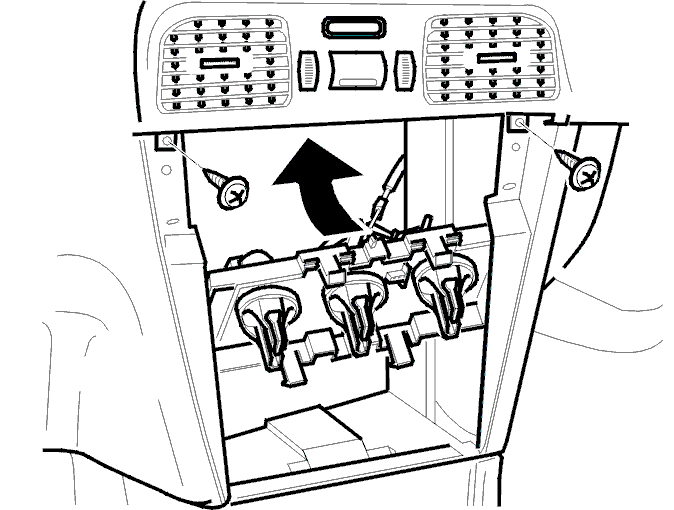

Fig 1: Positioning The Heater System Control Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Applies only to cars with ECC.

Position the control panel.

Install two screws at the top edge.
