Fuel Line And Fuel Pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

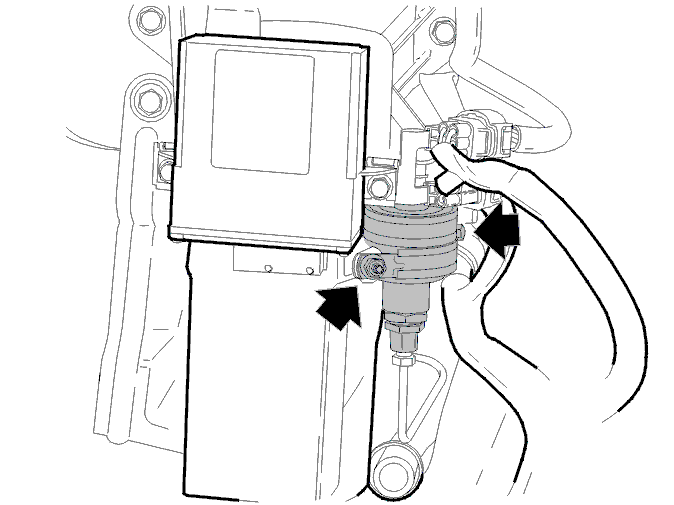

Fig 1: Fuel Line And Fuel Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: Protective gloves and protective goggles must be used for the following operations. This is due to the risk of fuel spillage.

Remove the screw holding the clamp around the fuel pump.

Remove the lower clamp on the fuel line. Disconnect the fuel line from the fuel pump.

Disconnect the fuel pump connector.

Remove the fuel pump.

Transfer the clamp to the new pump.
