Engine Compartment

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Battery And Shelf

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

battery and battery shelf (4 screws).

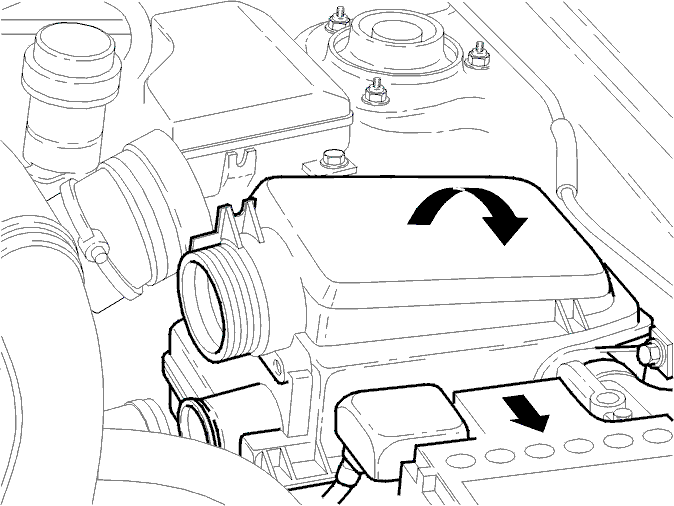

Fig 2: Removing Air Cleaner Hosing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

air containment (2 screws)
fuse holder (2 screws).

Fig 3: Fuel Damper Screws, Hose Clamps And Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: Protective gloves and protective goggles should be used for the following operations because of the risk of fuel spillage.

Remove:

screws (2) retaining the fuel damper. Push the damper out of the way
hose clamps and hoses (3)
hoses (4) from fuel line
pipe from clamp (1).
