Atomizer And Fuel Injection Nozzle
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

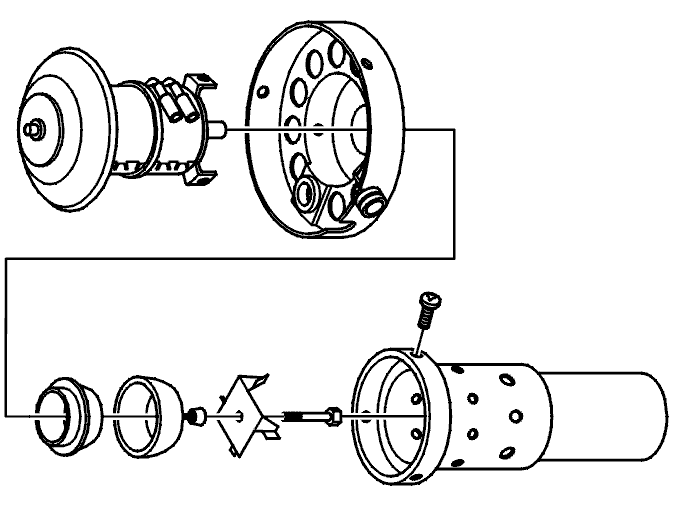

Install:
- atomizer
- conical spacer pointing towards the outer nozzle head
- outer nozzle head
- fuel injection nozzle
on the screw.
Then install the screw and components onto the fan motor spindle. Torque to 2 Nm .
Install the combustion chamber.
NOTE:
The glow plug socket must be to the left of the lead-in for the fan motor wiring.
